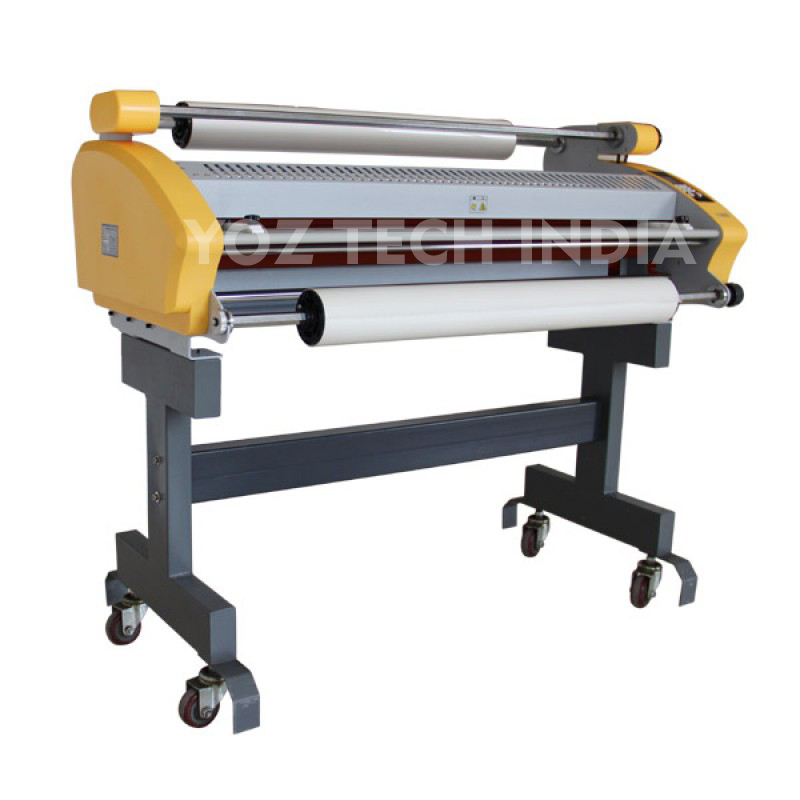

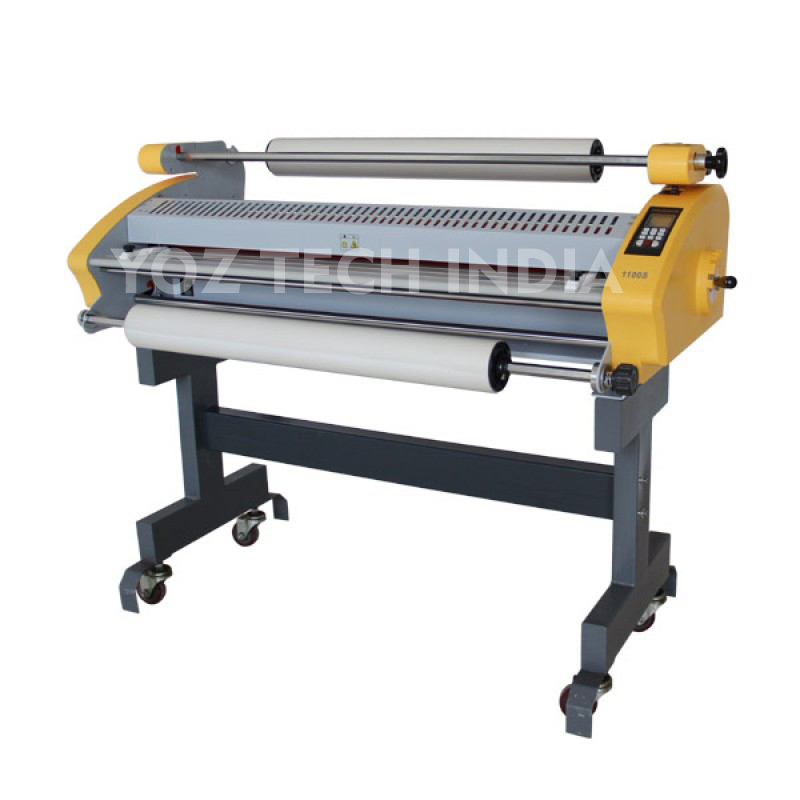

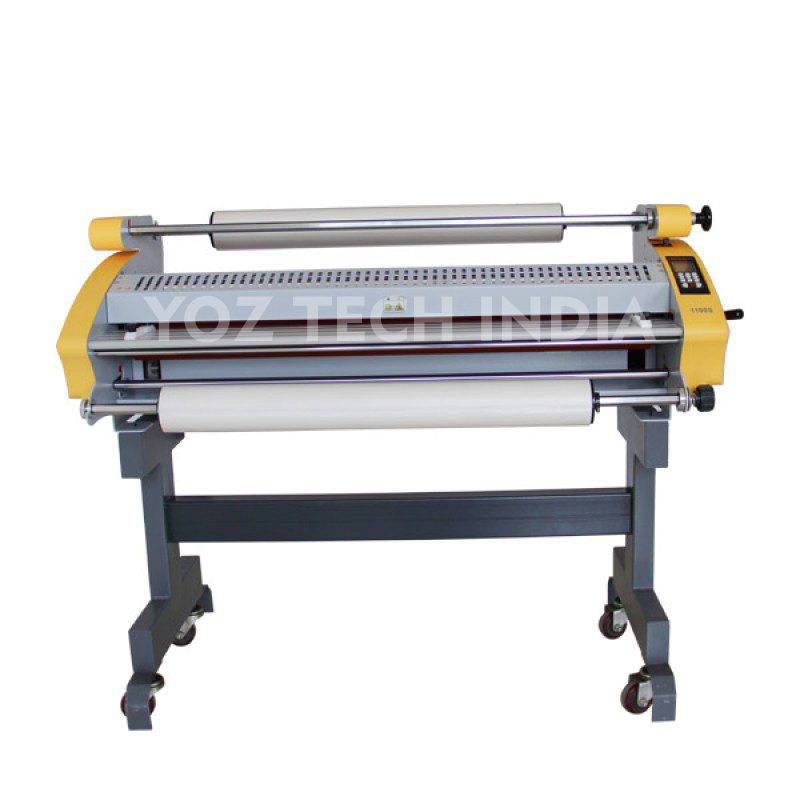

YOZ TECH INDIA LARGE FORMAT THERMAL LAMINATION MACHINE TLM 1100DX

285,000 525,000 46% off

Store: YOZTECHINDIA

YOZ TECH INDIA LARGE FORMAT THERMAL LAMINATION MACHINE TLM 1100DX


Product Introduction
Heated roll laminator uses heated rollers to melt glue extruded onto lamination film. This film is in turn applied to a substrate such as paper or card using pressure rollers. The primary purpose of laminating with such a machine is to embellish or protect printed documents or images. Heated roll laminators can vary in size from office based pouch laminators to industrial sized machines. Such industrial machines are primarily used for high quantity/quality output by printers or print finishers.
Whether small office or industrial machines their primary function is to embellish or protect printed works. Such laminators are used to apply varying thicknesses of lamination film onto substrates such as paper or fabrics. The main advantage to the use of heated roll laminators is that of speed. Heated laminators use heated rollers or heated shoes to melt the glue which is applied to lamination film. The process of heating the glue prior to applying the film to a substrate allows for a faster application of the film. The laminates and adhesives used are generally cheaper to manufacture than cold roll laminates, often as much as half the cost depending on the comparison made. As the materials are non-adhesive until exposed to heat, they are much easier to handle. The glue is solid at room temperature, so lamination of this type is less likely to shift or warp after its application than pressure activated laminates, which rely on a highly viscous, adhesive fluid.

2 In Stock
Deliver to

Products information


Max. Lamination width :1100mm
Max. Lamination speed :600-3000mm/min
Max. Lamination temperature :180C
Max. clearance between top bottom rollers :6mm
Recommended film :25-250micron
Warm up time :about 10 mins
Single side Lamination Function:Yes
Double side Lamination Function:Yes
with perforating blade :No
Auto Feeding paper :No
Hot Lamination :Yes
Cold Lamination :Yes
Power :AC220,110V /50,60HZ,2100W
Diameter of core :1, 1.5, 3"
Diameter of core :137*56*46cm
Weight :172 kgs

Weight 2.1 kg
Dimensions 122 × 145 × 321 cm
