19% off

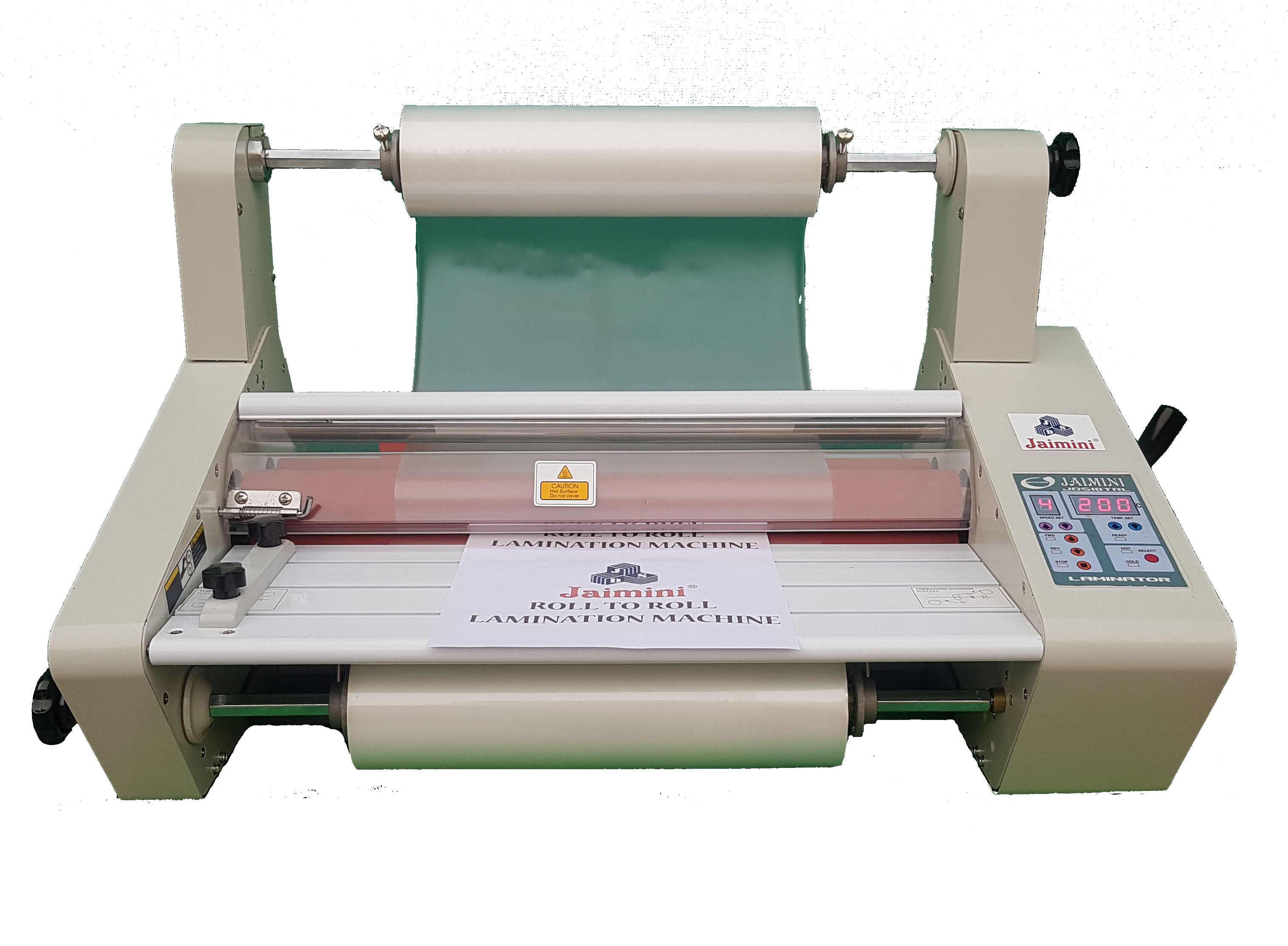

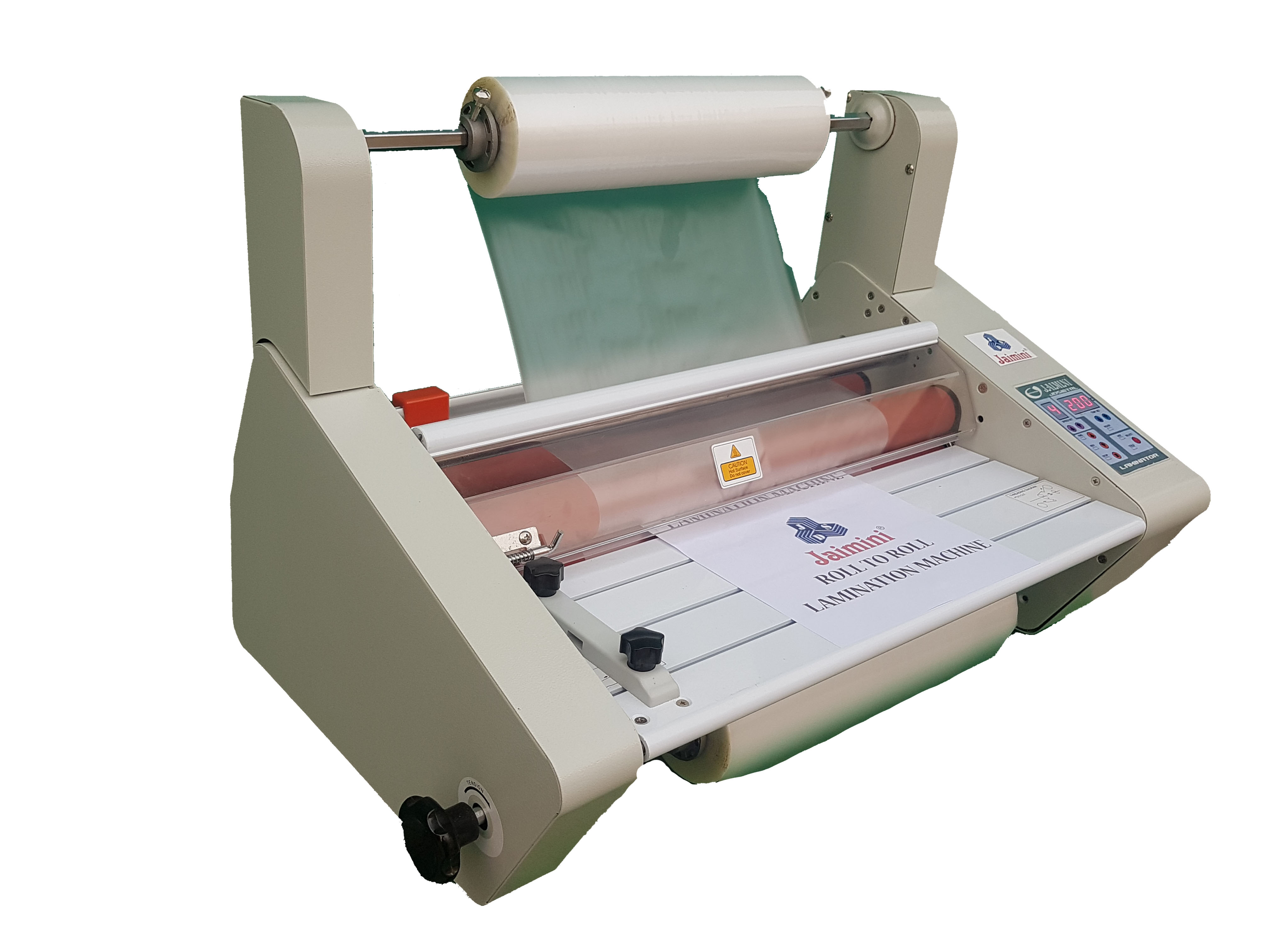

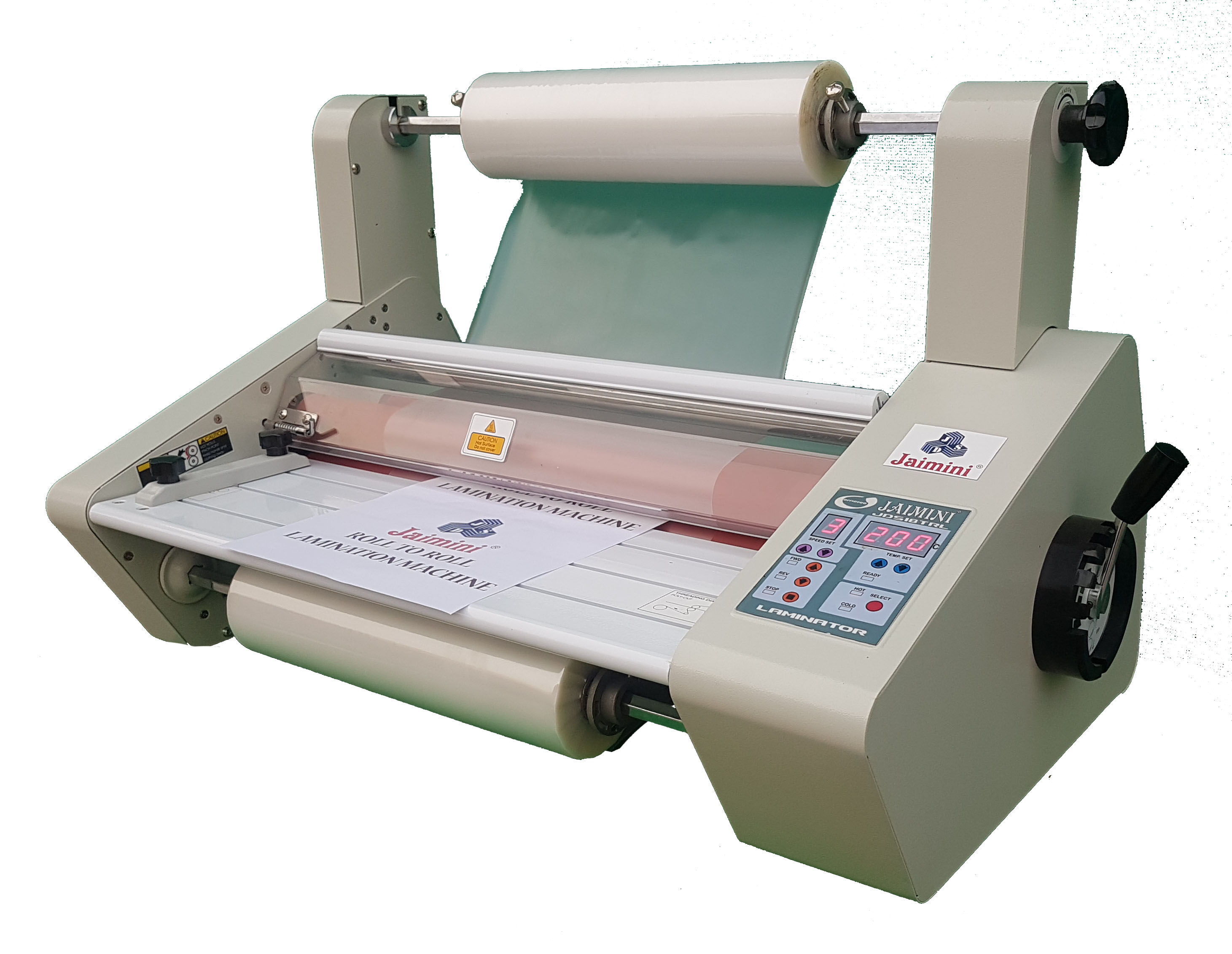

      JAIMINI THERMAL LAMINATION MACHINE TLM480

      65,000 80,000 19% off

      Store: YOZTECHINDIA

      JAIMINI THERMAL LAMINATION MACHINE YOZTECH TLM480

      1. Hot roll technology with hot & cold control system
      2. Infrared photocell safety protection
      3. Adjustable temperature, speed and pressure
      4. Digital display system & reverse function
      5. Reverse button removing jammed films
      6. Tension control on film mandrel
      7. Metallic construction for durability

      5 In Stock
      Add To Wishlist Compare
      Deliver to
      Check


      Products information


      Maximum film width :                                                 460mm
      Maximum film thickness  :5mm
      Fastest film thickness  :3000mm/min
      Highest film temperature 170?
      Power :110,220v/50,60Hz
      Heating power  :1200W
      Motor power :30W
      Size :72*44*31cm
      Weight :48kgs
      Dia. of Heating Rubber Rollers :45mm
      Dia. of Discharging Rollers :30mm
      Mold core specification 1" & 3"


      Weight 2.1 kg
      Dimensions 122 × 145 × 321 cm
