      FUSING MC 100 CARD A4

      100,100 150,000 33% off

      Store: YOZTECHINDIA

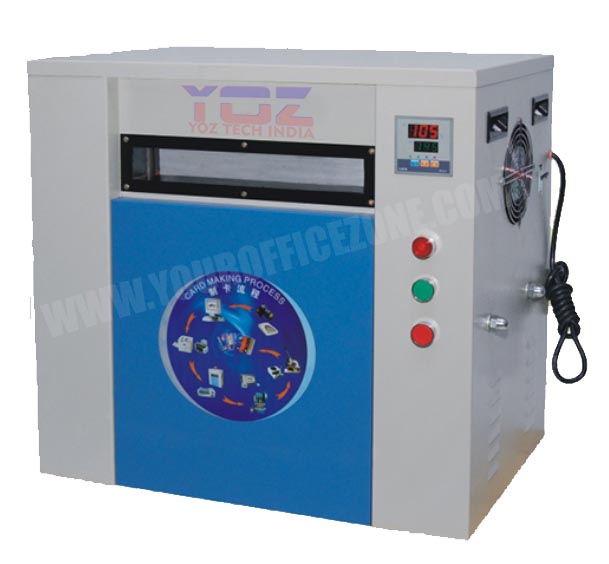

      AUTO PRESS A4 FUSING MACHINE 200 CARDS

      YOZA4200ST AUTOMATIC PRESS FUSING MACHINE YOZA4200ST 200 CARDS / HOUR


      Feed materials with tray into machine by hand, manually turn down the hand wheel for pressure strongly, the microcomputer control temperature and time ,total cycle time from heating to cooling only 12minutes.

      7 In Stock
      Add To Wishlist Compare
      Deliver to
      Check

      YOZA4200ST AUTOMATIC PRESS FUSING MACHINE YOZA4200ST

      100 CARDS / HOUR


      Model No. : YOZA4200ST
      Laminating Materials PVC, PET, PETG, Teslin, ABS, or other plastic materials
      Voltage Input 110V or 220V 50/60Hz
      Power 3.5KW
      Pressure Method oil hydraulic pressure system
      Laminating Size 220*310mm
      Temperature Range 0-160 (0-2300) ,2 steps pressure
      Laminating Opening one opening for heating then cooling
      Opening Height 45mm
      Laminating Layer maximum 15 layers
      Heating Method Heating elements(Heating tubes)- PID
      Cooling Method water cooling(water in /water out)
      Working Efficiency over 500pcs card per hour
      Cycle Time 8-10 minutes
      Power Consumption 2.5-3.5KW per hour
      Packing Size 630mm*490mm*640mm
      Gross Weight 150KGS

      Weight 2.1 kg
      Dimensions 122 × 145 × 321 cm
